RCC Slit drain

Name: RCC Slit drain
Brand: SHRERAM CONCRETE PRODUCTS
Price: 1500 INR
Availability: InStock

Price 1500 INR/ Piece

Get a Price/Quote

RCC Slit drain Specification

Tensile Strength
>4.0 MPa

Sealing Type
Mastic Sealant (if required)

Temperature Range
-10C to 55C

Coating Type
No Coating

Connection Type
End-to-End Joint

Bend Radius
Rigid, Not Bendable

Flexibility
Rigid

Tolerance
5 mm

Product Type
RCC

Material
Reinforced Cement Concrete (RCC)

Connection
Male-Female/Butt Joint Ends

Shape
Rectangular with Slit Opening

Standard
IS 458:2003 / IS 14316:1996

Surface Treatment
Smooth Finish

Section Shape
Box Section with Slit

Length
1000 mm (Standard)

Thickness
75 mm (Typical)

Color
Grey

Usage
Storm Water Drainage, Side Drainage

Application
Roadways, Industrial Premises, Infrastructure Projects

Material Grade
M30 or M40 Grade RCC

Resistance
Corrosion and Weather Resistant

Slit Width
20 mm (Standard)

Eco Friendly
Yes, recyclable material

Load Bearing Capacity
Up to 40 Tonnes (Class AA/IRC standard)

Weight
Approx. 80 kg/piece

Reinforcement Type
TMT Bars, Welded Mesh

Installation Method
Laid on Compacted Bed/Concrete Base

Life Expectancy
25-40 Years

Water Absorption
<5%

Maintenance
Low, periodic cleaning required

Dimensions (W x H)
300 mm x 300 mm (Other sizes available)

RCC Slit drain Trade Information

Minimum Order Quantity
50 Meter

Supply Ability
5000 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About RCC Slit drain

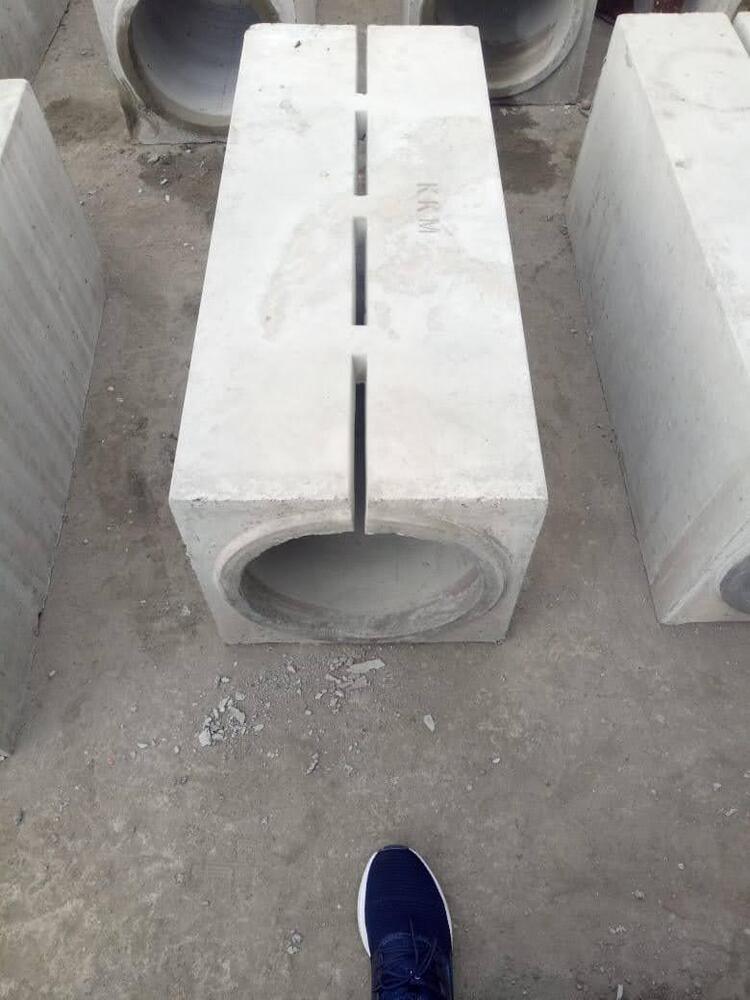

An RCC (Reinforced Cement Concrete) slit drain isa precast, pipe-shaped drainage system with a narrow, 20mm wide slit at the top that discreetly collects surface water into an integrated carrier pipe.Made from M30 grade concrete with TMT bar reinforcement, these durable drains blend seamlessly with surrounding surfaces, making them ideal for roads, car parks, pedestrian areas, and industrial sites while resisting heavy loads and discouraging silt clogging due to their diverging slit shape.

Engineered Strength and Reliability

Designed to handle heavy-duty applications, the RCC Slit Drain supports maximum loads up to 40 tonnes, conforming to Class AA/IRC standards. Its reinforced structure, incorporating TMT bars and welded mesh, guarantees high tensile strength and durability, making it ideal for roadways, industrial premises, and large infrastructure projects across India.

Efficient Water Management Solution

With its 20 mm standard slit opening and box-section design, the drain efficiently channels storm water away from surfaces, reducing the risk of flooding. The smooth finish facilitates debris movement and periodic cleaning, while the rigid, end-to-end joint construction ensures stable installation and uninterrupted drainage performance.

Eco-Friendly and Sustainable Design

Manufactured from recyclable RCC, the slit drain is an environmentally conscious choice for modern construction. It boasts low water absorption, minimal maintenance requirements, and is free from toxic coatings, making it a safe, sustainable solution for both urban and industrial landscapes.

FAQs of RCC Slit drain:

Q: How are RCC slit drains installed for maximum performance?

A: RCC slit drains are typically laid on a compacted bed or concrete base to ensure stability and efficient load transfer. Joints can be connected using either male-female ends or butt joints, and mastic sealant may be applied if required for added sealing. Professional installation is recommended for optimal results.

Q: What makes RCC slit drains suitable for heavy-duty applications?

A: These drains are made from high-quality M30 or M40 grade reinforced cement concrete, reinforced with TMT bars and welded mesh for added strength. They meet Class AA/IRC standards, with a load bearing capacity up to 40 tonnes, making them ideal for roads, industrial sites, and infrastructure projects.

Q: When should RCC slit drains be used in a project?

A: RCC slit drains are ideal for areas requiring efficient storm water or side drainage, especially where high durability and load resistance are crucial. They are commonly used in roadways, industrial premises, and various infrastructure developments that demand long-lasting and low-maintenance drainage solutions.

Q: Where can these RCC slit drains be effectively applied?

A: These drains are suited for installation along the sides of roads, in industrial premises, parking lots, and any infrastructure requiring robust drainage solutions. Their corrosion and weather resistance make them especially effective in exposed environments and locations subject to heavy traffic.

Q: What are the key benefits of choosing RCC slit drains over traditional drainage systems?

A: RCC slit drains offer enhanced durability, high load capacity, resistance to weather and corrosion, and low water absorption. Their eco-friendly, recyclable material and low-maintenance design result in reduced lifecycle costs, while their smooth finish aids in debris movement and efficient cleaning.

Q: How much maintenance do RCC slit drains require?

A: These drains are designed for low maintenance. Periodic cleaning is recommended to ensure the slit openings remain clear, allowing for continuous water flow. Their robust and corrosion-resistant construction minimizes the need for frequent repairs or replacements.
